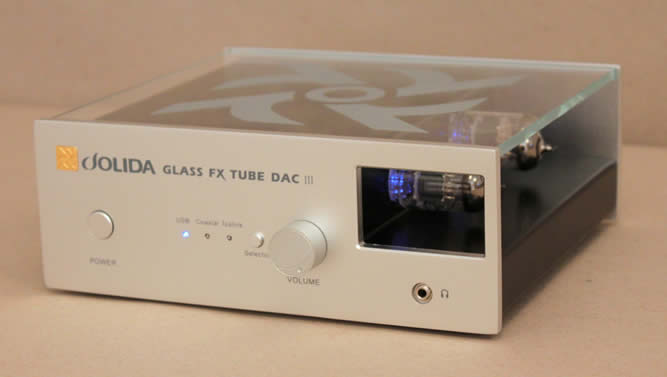

FX Tube Dac III

Posted by tntadmin
$0.00
SKU: FX Tube Dac II

Call for price and availability before ordering



A DAC with a heart of glass and no solid state op amps in the signal path. This unit will maintain the purity of your digital sound with the latest in chip technology, galvanic isolation and circuit design giving you the smooth and rich analog sound only vacuum tubes can deliver.

 Sales Policy : All sales are final no returns accepted.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed additionally  customer will be responsible for all shipping charges to and from the shipping point.By placing an order you are accepting these terms.









Output Level:                        0 V to 2.3V  (±1dB, 47K ohms)(SIN SIGNAL 0dB SPDIF IN)

Frequency Response:          20-20 KHz   (±0.5dB)

Bandwidth:                            10Hz to 70kHz + 1dB

SNR                                        >90dB ( 20Hz-20kHz)

Dynamic Range                     126 dB

Distortion THD:                    Less than 0.01% (1kHz)

Headphone Impedance        30 Ohms

Circuit Type:                         Ultra Linear, Class AB

Tube Complement:               2 pcs. 12AX7 pre-amplifier

Power Requirements:          110V-120 VAC 60Hz 90 watts-standby, 240 watts maximum (220 VAC 50Hz option)

Dimensions:                          8 inches wide by 7 inches deep by 3 inches high

Weight:                                   7.5 lbs net, approximately 10 lbs.packaged

Warranty:                               6 month limited parts and labor. Three months on the tubes

Fuse:                                      110 - 120 VAC, 1 Amp slo Blo; 200 - 240 VAC, .5 Amp Slo Blo

Construction Details and Features:

USB: 24/96 up sampling to 192 Hz

Toslink and coaxial: 24/192Hz

Galvanic Isolation: ADuM 1250 chips

Asynchronous Burr Brown Chip AD1896

Volume control and headphone jack

DAC Chip: PCM 1798

R Style Transformer

State the Art Components: capacitor filters, gold plated RCA jacks,

Finishes: Black and Silver



Price: $0.00
