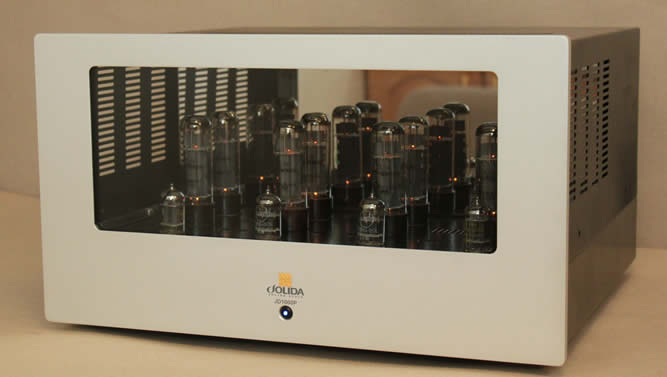

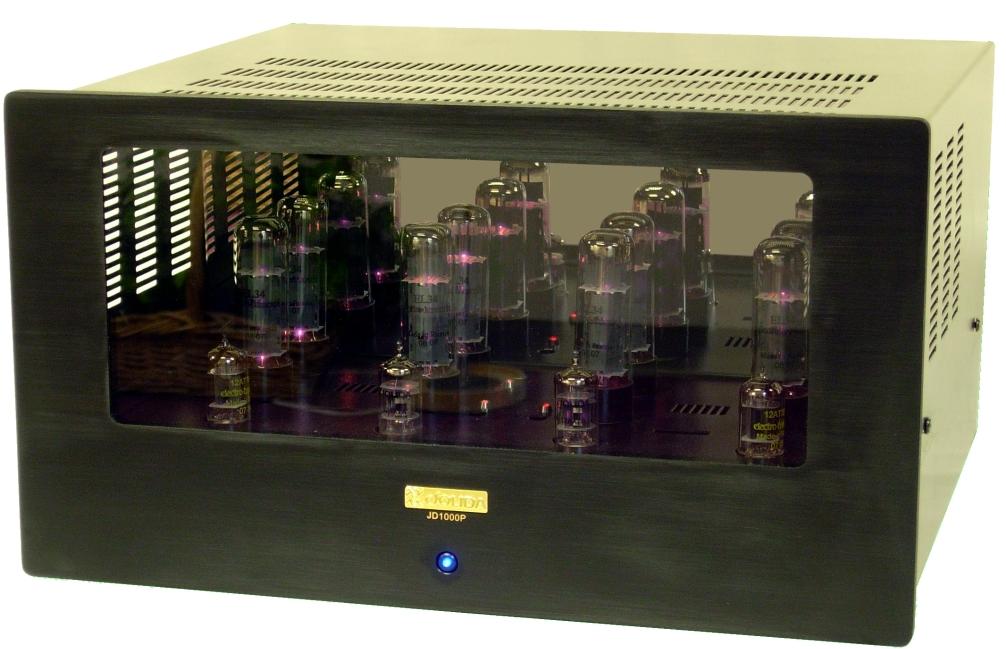

JD1000P Tube Power amp with EL34 Power Tubes

Posted by tntadmin
$0.00
SKU: JD100A

Call for price and availability before ordering





JD1000P amp

 100 watts per channel of hi-performance sound.  This amp has the power to drive 82 dB sensitivity speaker. It has drive and dynamics to make full symphonies or hard rock come to exciting life. But this amplifier has a gentle side as well and can deliver all the nuances of a delicate sound. Clear, robust bass with smooth highs and an image as large as your room in a value priced package. The EZ-Biasing system make the operation and the maintenance of the JD 1000 BRC a simple matter.

 Sales Policy : All sales are final no returns accepted.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed additionally  customer will be responsible for all shipping charges to and from the shipping point.By placing an order you are accepting these terms.









Rated Output Power:           100 W per channel at 8 ohms, 25Hz to 70KHz

Maximum Power Output:    150 W per channel at 8 ohms, 1KHz

Frequency Response:          (at 1 watt into 8 ohms) 8Hz to 130KHz   + 1dB

Bandwidth:                            13Hz to 80kHz + 3dB; 0dB 100 W 1KHz

Distortion THD:                    Less than 1% at 100 W output, 28Hz to 15KHz

Circuit Type:                         Ultra Linear, Class AB1

Input Impedance:                  100Kohms

Input Sensitivity:                   2 V at 1KHz and 8 ohms for 100-watt output

Output Impedance:               4 ohms and 8 ohms

Negative Feedback:               Less than 5 dB

Noise and Hum:                    85dB below rated output

Tube Complement:               4 pairs (8) of  6CA7/EL34 Power Tubes; 2 pcs. 12AX7 pre-amplifier; 2 pcs. 12AT7/ECC81 power drivers.

Power Requirements:          110V-120 VAC 60Hz 90 watts-standby, 240 watts maximum (220 VAC 50Hz option)

Dimensions:                          17 1/8 inches wide by 16 inches deep by 9 7/16 inches high

Weight:                                   70 pounds net, approximately 75 pounds packaged

Warranty:                               Two year limited parts and labor. One year or 1000 hours whichever  comes first on Jolida Tubes.

Bias Settings:                        400 millivolts + 40 mV

Fuse:                                      110 - 120 VAC, 6.3 Amp Slo Blow; 200 - 240 VAC, 3 Amp Slo Blow
