SKU: jd1501p

Hybrid Stereo Power Amplifier ( not an integrated amp) with 12AX7 input tubes

Price includes freight (Domestic USA locations only not good for Hi or Alaska ) do not select any shipping method when ordering . All Jolida units are shipped via Fedex ground with signature required upon receipt.  .Not sure about this model? Have questions? Email us and we'll be glad to consult you or address your concerns,

Price includes freight

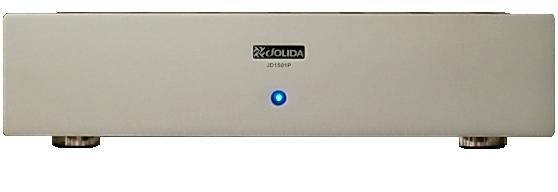

JD1501P Hybrid Power Amplifier


Technical Specifications:


Rated Output Power:           100 W per channel at 8 ohms, 22Hz to 19KHz


Frequency Response:          (at 1 watt into 8 ohms) 10Hz to 35KHz   + 1dB


Bandwidth:                            22Hz to 19kHz + 3dB; 0dB 100 W 1KHz


Distortion THD:                    Less than 0.1% at 100 W output, 22Hz to 18KHz


Input Impedance:                  47Kohms


Input Sensitivity:                   1.2V at 1KHz and 8 ohms for 100-watt output


Noise and Hum:                    90dB below rated output


Tube Complement:               2 pcs. 12AX7 for the preamplifier


Power Requirements:          110V-120 VAC 60Hz 180 watts-standby, 450 watts maximum (220 VAC 50Hz option)


Dimensions:                          17 inches wide by 13 inches deep by 4 inches high


Weight:                                   32 pounds net, approximately 33 pounds packaged


Warranty:                               18 months limited parts and labor. Six months or 1000 hours whichever comes first on Jolida Tubes.


Fuse:                                      110 – 120 VAC, 6.3 Amp Fast Blow; 200 – 240 VAC, 3.15 Amp Fast Blow


Construction Details and Features:


o Hybrid Stereo Power Amplifier: Input 1.2 V driving 100 watts


o Multiple Inputs:  RCA or XLR.





Price: $0.00
