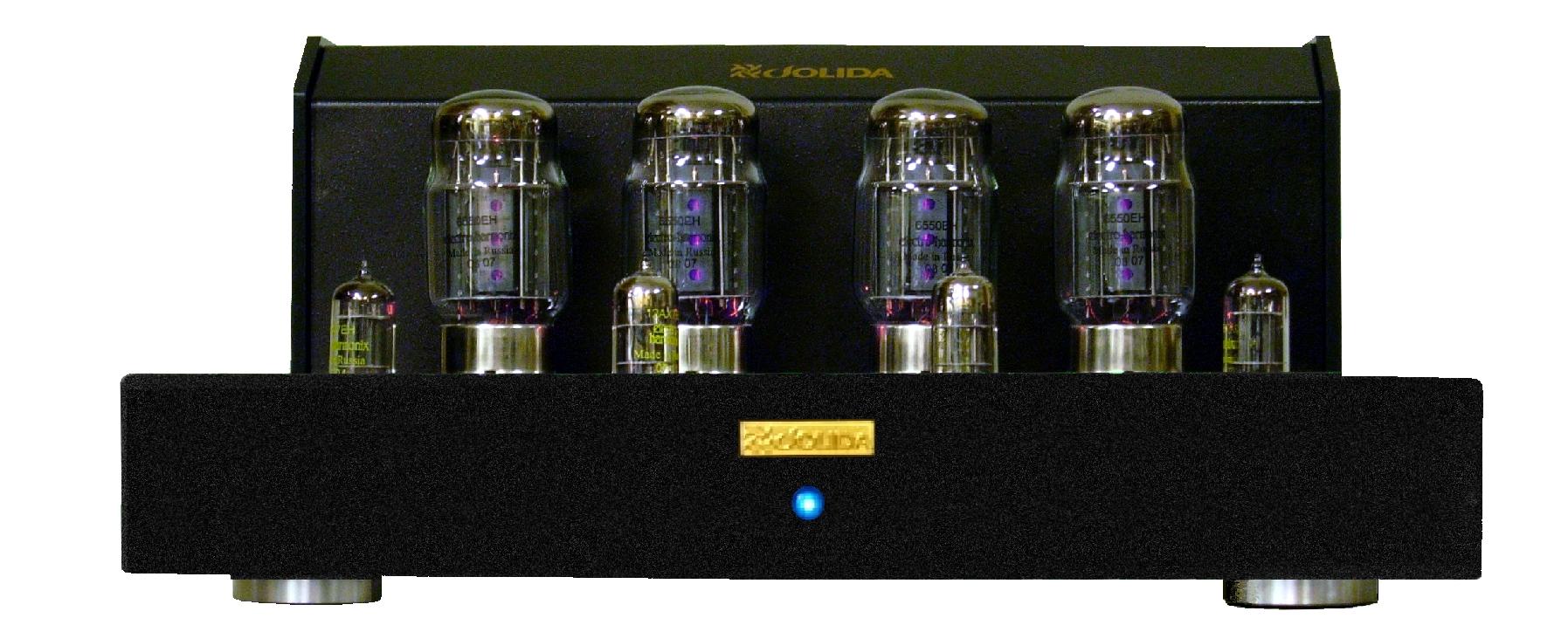

Fusion 3502P Tube power amp,Call or email before ordering to check stock

Posted by tntadmin

Call for price and availability before ordering


Looking for a power amplifier with heft and speed. The Fusion 3502P will give you separation and inner dynamics that will drive the most demanding in music. Ez biasing and long tube life assures minimal maintenance for your unit.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed.

  Sales Policy : All sales are final no returns accepted.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed additionally  customer will be responsible for all shipping charges to and from the shipping point.By placing an order you are accepting these terms.





Rated Output Power:           60 W per channel at 8 ohms, 22Hz to 60KHz

Maximum Power Output:    85 W per channel at 8 ohms,  1KHz

Frequency Response:          (at 1 watt into 8 ohms) 8Hz to 130KHz   + 1dB

Bandwidth:                            15Hz to 80KHz + 3dB; 0dB 60 W 1KHz

Distortion THD:                    Less than 1% at 20 V output, 28Hz to 15KHz

Circuit Type:                         Ultra Linear, Class AB

Input Impedance:                  100Kohms

Input Sensitivity:                   2 V at 1KHz for 60 watt output

Output Impedance:               4 ohms and 8 ohms

Negative Feedback:               Less than 5 dB

Noise and Hum:                    85dB below rated output

Tube Complement:               2 matched pairs (4) of  6550/KT88 power output; 2 pcs. 12AX7A/ECC83 pre-amplifier; 2 pcs. 12AT7/ECC81 power drivers.

Power Requirements:          110V-120 VAC 60Hz 180 watts-standby, 450 watts maximum (220 VAC 50Hz option)

Dimensions:                          17 inches (43cm) wide by 15 inches (38cm) deep by 7.5 inches (19 cm) high

Weight:                                   50 pounds (18 Kg) net, approximately 55 pounds (21 Kg) packaged

Warranty:                               Two year limited parts and labor. One year or 3000 hours whichever comes first on Jolida Tubes.

Bias Settings:                        500 millivolts + 50 mV

Fuse:                                      110 - 120 VAC, 6.3 Amp Fast Blo; 200 - 240 VAC, 3 Amp Fast Blo

                                                Size 5mm X 20mm

Construction Details and Features:

o Stereo Power Amplifier: Input 2 V driving 60 watts, maximum 85 watts output.

o Multiple Inputs: RCA and XLR inputs.

o Custom Wound Audio Transformers with a core of German grain oriented silicon steel. 15th

   generation proprietary design.  Secondary can be configured for a 4 ohm or 8 ohm load.

o Top panel bias testing terminal with bias adjustment controls plus EZ-biasing.

o State of the Art Components: Hexfred Diodes, ceramic composite grid resistors, custom coupling caps.

o Low Feedback Design: Only 5 dB

o Available in Black or Silver



Price: $0.00
