Fusion Dac Transport - call or email for price

Posted by tntadmin
$0.00
SKU: Dac Mini

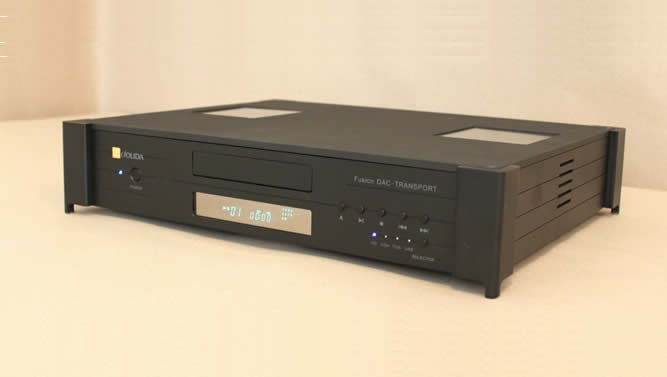

 Caall or email for price !!!Pure tube, no op amps in a DAC that has a transport for CD playing as well. With a fully balanced circuit and six tubes in the signal path, this player will bring definition in clarity without any loss of smoothness. Transparency and air without any sacrifice of richness. Parts are of first grade quality and we have taken the worry out of chip obsolescence; should we upgrade the chips, it will be just a matter of changing the board. Time to see what tubes and a Hi-performance circuit will have on your digital music.

Sales Policy : All sales are final no returns accepted.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed additionally  customer will be responsible for all shipping charges to and from the shipping point.By placing an order you are accepting these terms.





Frequency Response:                      20-20KHz ± 0.5dB + 0.5dB

S/N Signal to Noise Ratio:               > 98dB

THD + N Distortion:                         ≤0.02% (Balanced signal 1KHz

Channel Separation:                        > 96dB   (1KHz)

Analog Output Signal                      Balanced XLR, Unbalanced RCA

Line Output Voltage:                        Balanced signal output 5.0V, 47Kohms

Line Output Voltage:                        Unbalanced 2.5V,  47Kohms

Digital Output:                                  0.5Vpp, 75 ohms

Tubes :                                               6 pcs. 12AX7 *2,12AT7*2,12AU7*2

Power:                                                110V or 220V   AC  50Hz/60Hz

Power Consumption:                       30 watts

Fuse:                                                  1.0 amp fast blo (size 5mm X 20mm) for 110/120 VAC --- 0.5 amp fast blo for 220/240 VAC

Size:                                                   17 in. wide by 12 in. deep and 3.5 in. high

Weight:                                               28 pounds

Warranty:                                           12 months on the chassis, 6 months on the vacuum tubes. Parts and labor



Stereo configured in Dual MonoTube Circuit (Fully Balanced Circuit)  XLR and RCA outs



Full aluminum chassis

Dac Board can be interchanged with future upgraded boards

Upgraded part such as ESA clarity caps, ultra fine cast wire in the signal path.

Full Metal Remote Control

Phillips Transport

Input Signal CD Disc, USB, Coaxial or Toslink

In terms of function, the DAC Transport can operate as a stand alone DAC with USB, Toslink and Coaxial inputs.

Digital Output signal toslink or Coaxial

2 pieces premium Tungsol 12AU7 preamplifier vacuum tubes.

2 pieces premium Tungsol 12AT7 driver vacuum tubes

2 pieces premium Tungsol 12AX7 driver vacuum tubes





DAC Specifications

Main IC Chip USB Power Isolation ADMU4160

USB Receiver TE7022 24BIT/96K

SPDIF Receiver CS8416 24BIT/192K

Asynchronous Sampling AD1896 24BIT/192K

D/A Convert PCM 1794 24BIT/192
