Price includes freight (Domestic USA locations only not good for Hi or Alaska ) do not select any shipping method when ordering . All Jolida units are shipped via Fedx ground with signature required upon receipt. Not sure about this model? Have questions? Email us and we'll be glad to consult you or address your concerns, no question is too bothersome, email us so we can help you!! info@newtube.com

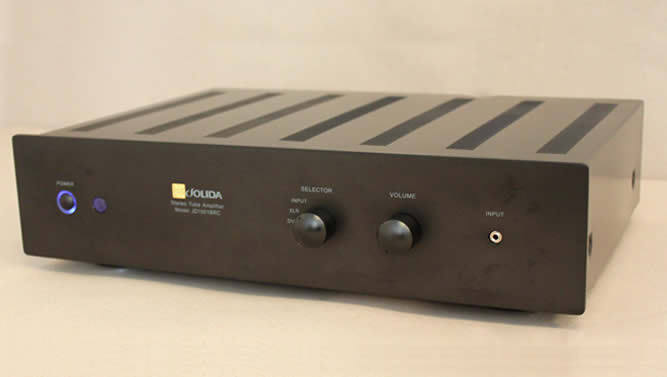

Model JD 1501RC:
A Remote Control Integrated Stereo Hybrid Amplifier
Combines the best of two worlds, a tube pre-amp with a solid state power amplifier. A smooth silky sound with pace and bass at an affordable price and the convenience of remote control. Combine this unit with a JD 1704 RC and a DVD player with built in processing and you have a Home Theater system.
Construction Details and Features:
- Fully Integrated Stereo Amplifier: Input 500mV driving 100 watts.
- Remote Control: Volume( +/- ), Standby, & Mute
- Multiple Inputs: Front mounted push button selector switch-CD, Tape Recorder, Tuner and Aux. (for VCR, DVD Player, TV, Computer) and two tape outputs.
- State of the Art Components: ALPS audio potentiometer, gold plated RCA input jacks
- Variable and Fixed outputs are now standard on this model
Technical Specifications:
|
Rated Output Power:
|
100 W per channel at 8 ohms, 22Hz to 19KHz
|
|
Frequency Response:
|
(at 1 watt into 8 ohms) 5Hz to 100KHz + 1dB
|
|
Bandwidth:
|
22Hz to 19kHz + 3dB; 0dB 100 W 1KHz
|
|
Distortion THD:
|
Less than 0.1% at 90 W output, 22Hz to 18KHz
|
|
Input Impedance:
|
47Kohms
|
|
Input Sensitivity:
|
500mV at 1KHz and 8 ohms for 100 watt output
|
|
Noise and Hum:
|
90dB below rated output
|
|
Tube Complement:
|
2 pcs. 12AX7 for the preamplifier.
|
|
Power Requirements:
|
110V-120 VAC 60Hz 180 watts-standby, 450 watts maximum (220 VAC 50Hz option).
|
|
Dimensions:
|
17 inches wide by 13 inches deep by 4.5 inches high high.
|
|
Weight:
|
32 pounds net, approximately 35 pounds packaged.
|
|
Warranty:
|
18 months limited parts and labor. Six months or 1000 hours whichever comes first on Jolida Tubes.
|
