$699.00
SKU: JD202A
Price includes freight (Domestic USA locations only not good for Hi or Alaska ) do not select any shipping method when ordering . All Jolida units are shipped via Fedex ground with signature required upon receipt
JD202A Jolida Integrated amp 40 Watts
Special price $699 Includes shipping
Construction Details and Features:
- Fully Integrated Stereo Amplifier: Input 350mV driving 40 watts, maximum 50 watts output.

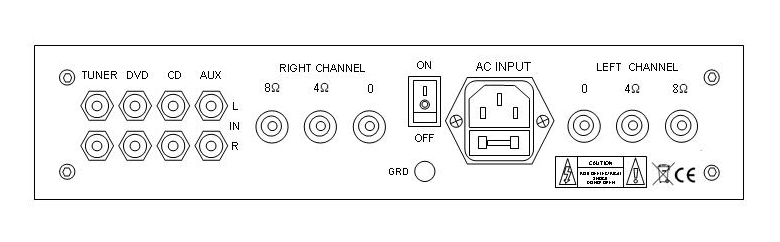

- Multiple Inputs: Front mounted selector switch-CD, Tuner and Aux (for TV, DVD Player, VCR or computer).
- Custom Wound Audio Transformers with a core of German grain oriented silicon steel. 15th generation proprietary design. Secondary can be configured for a 4 ohm or 8 ohm load.
- State of the Art Components: ALPS or Panasonic audio potentiometer, gold plated RCA input jacks, gold plated five way speaker connectors.
- Low Feedback Design: Only 9 dB.
Technical Specifications:
|
Maximum Power Output:
|
60 W per channel at 8 ohms, 1KHz
|
|
Rated Output Power:
|
40 W per channel at 8 ohms, 30Hz to 80KHz
|
|
Frequency Response:
|
(at 1 watt into 8 ohms) 7Hz to 140KHz + 3dB; 0dB at 1KHz
|
|
Bandwidth:
|
17Hz to 140KHz + 3dB; 0dB = 40 W 1KHz, 8 ohms
|
|
Distortion THD + N:
|
Less than 1% at 30W output, 40Hz to 14KHz, 8 ohms
|
|
Circuit Type:
|
Ultra Linear, Class AB1
|
|
Input Impedance:
|
100Kohms
|
|
Input Sensitivity:
|
Max. 350mV at 1KHz for 40 watt output
|
|
Output Impedance:
|
4 ohms and 8 ohms
|
|
Negative Feedback:
|
Less than 9 dB
|
|
Noise and Hum:
|
80dB below rated output.
|
|
Tube Complement:
|
2 matched pairs (4) of 6CA7/EL34 power output; 2 pcs. 12AX7A pre-amplifier, 2 pcs. 12AT7 power drivers.
|
|
Power Requirements:
|
110V-120 VAC 60Hz 120 watts-standby, 300 watts maximum (220 VAC 50Hz option).
|
|
Dimensions:
|
12.5 inches (30 cm) wide by 12 inches (31 cm) deep by 8.25 inches (21 cm) high.
|
|
Weight:
|
28 pounds (13 Kg) net, approximately 32 pounds (15 Kg) packaged.
|
|
Warranty:
|
One year limited parts and labor. Six months or 500 hours whichever comes first on Jolida Tubes.
|
|
Bias Settings:
|
40 millivolts + 4 mV
|
|
Fuse:
|
110-120 VAC, 6.3 Fast Blo; 200-240 VAC, 3 Amp Fast Blo
|
Price: $699.00
