JD5T Jolida tube Remote control unit, price includes shipping

Posted by tntadmin
$0.00
SKU: JD5T

Call for price and availability before ordering



Price includes freight (Domestic USA locations only not good for Hi or Alaska ) do not select any shipping method when ordering . All Jolida units are shipped via Fedex ground with signature required upon receipt.

Sales Policy : All sales are final no returns accepted.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed additionally  customer will be responsible for all shipping charges to and from the shipping point.By placing an order you are accepting these terms. Free shipping applies to Domestic U.S. locations only.

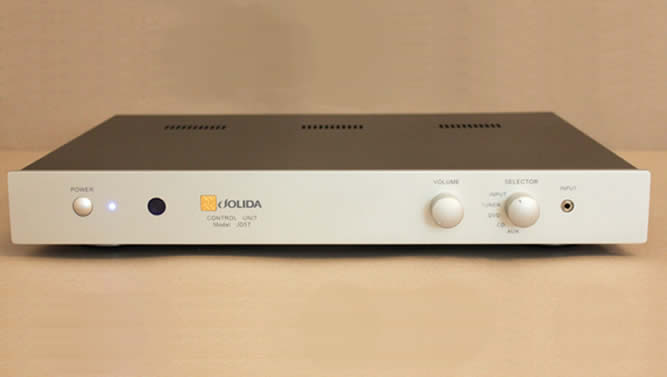

Model JD5T: Remote Control Unit

Our customers have requested remote controls on our amplifiers. And for years we have experimented and tried to fulfill the requests. Our basic problem was simple, one of physics and cost. To put in an inexpensive remote control system in the amplifier would compromise the sound quality, to put in a quality system with all the interference panels would raise the costs out of proportion of the cost of the basic amplifier. What to do? So we built a separate control box. Physics and cost satisfied. Not only can you control the volume of the amp, there is manual switching, remote on/off, two AC receptacles, and two outputs which now make hooking to a subwoofer or bi-amping an easy procedure. With a low profile and a full body you can put another component or amplifier right on top, no need to use another shelf.

Construction Details and Features:

Max Output voltage:             7 V

Voltage Gain:                        10 dB

Frequency Response:          10Hz – 70KHz, (+/- 1 dB)

SNR:                                       > 100 dB

Distortion THD:                    Less than .02%

Input Impedance:                  100Kohms

Output Impedance:               600ohms

Tube Complement:               2 pcs. 12AX7

Size:                                       17 in. (W) x 13 in. (D) x 2 in. (H)

Weight:                                   11 lbs., 13 lbs. Boxed

Construction Details and Features:

o  Multiple Inputs: Tuner, DVD, CD,  and Aux

o  Two RCA Outputs.

o  State of the Art Components: High quality Alps blue potentiometer, gold plated RCA

    input  jacks, R core power supply.

o  Remote Control has four functions: Standby, V+, V-, and Mute.

o  Low profile full body allows the unit to act as a base for your amplifier or turntable.





Price: $0.00
