$1,575.00
SKU: JD801A
Disregard Zero Price Call or Email for Sale price !! Note: If you try to order at Zero price the order will not be processed, email us at info@newtube.com for price
Price includes freight (Domestic USA locations only not good for Hi or Alaska ) do not select any shipping method when ordering . All Jolida units are shipped via Fedex ground with signature required upon receipt

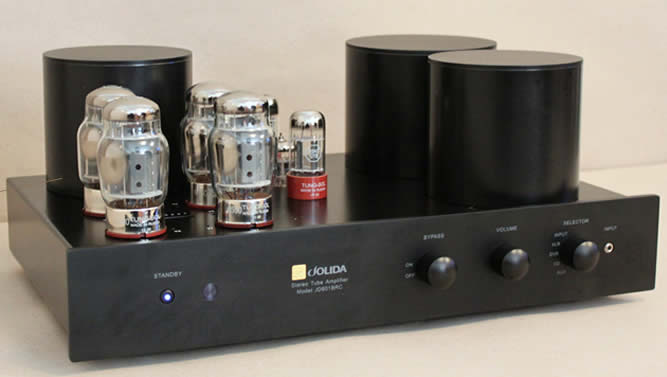

JD801A
Construction Details and Features:
- Silver or Black Face Plate ( Black maybe backordered) No longer available in Gold face plate.
- Fully Integrated Stereo Amplifier: Input 550mV driving 70 watts, maximum 140 watts peak output.

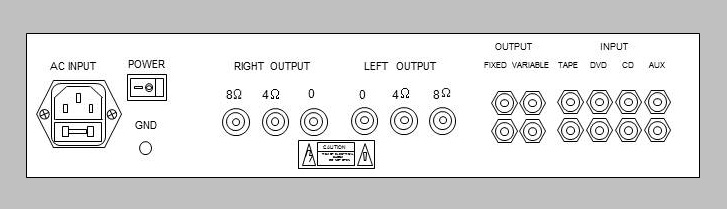

- Multiple Inputs: Front mounted selector switch-CD, Tape and Aux (for Tuner, TV, DVD Player, VCR or Computer). Front mounted input jack for ipods etc
- Custom Wound Audio Transformers with a core of German grain oriented silicon steel. 15th generation proprietary design. Secondary can be configured for a 4 ohm or 8 ohm load.
- State of the Art Components: High quality audio potentiometer, gold plated RCA input jacks, gold plated five way speaker connectors.
- Top panel bias testing terminal with bias adjustment controls.
- Low Feedback Design: Only 5 dB.
- Remote Control feature - now has remote control
Technical Specifications:
|
Maximum Power Output:
|
140 W per channel at 8 ohms, 1KHz, at peak 50% duty cycle
|
|
Rated Output Power:
|
70 W per channel at 8 ohms, 29Hz to 25KHz
|
|
Frequency Response:
|
(at 1 watt into 8 ohms) 6Hz to 48KHz + 1dB; 0dB at 1KHz
|
|
Bandwidth:
|
14Hz to 70KHz + 3dB; 0dB = 70 W 1KHz, 8 ohms
|
|
Distortion THD:
|
Less than 1% at 11V output, 49Hz to 20KHz, 8 ohms
|
|
Circuit Type:
|
Ultra Linear, Class AB1
|
|
Input Impedance:
|
Less than 100Kohms
|
|
Input Sensitivity:
|
Max. 550mV at 1KHz for 70 watt output
|
|
Output Impedance:
|
4 ohms and 8 ohms
|
|
Negative Feedback:
|
Less than 5 dB
|
|
Noise and Hum:
|
70dB below rated output.
|
|
Tube Complement:
|
2 matched pairs (4) of 6550/KT88 power output; 1 pc. 12AX7A pre-amplifier, 2 pcs. 12AT7A or 6SN7GT power drivers.
|
|
Power Requirements:
|
110V-120 VAC 60Hz 250 watts-standby, 500 watts maximum (220 VAC-240 VAC 50Hz option).
|
|
Dimensions:
|
18.25 inches (46.5 cm) wide by 13.5 inches (34.5 cm) deep by 8.5 inches (22 cm) high.
|
|
Weight:
|
47 pounds (21.5 Kg) net, approximately 55 pounds (25 Kg) packaged.
|
|
Warranty:
|
One year limited parts and labor. One year or 1,000 hours whichever comes first on Jolida Tubes.
|
Price: $1,575.00
